Продам Продаем Токарно-фрезерный центр DOOSAN PUMA MX2100ST

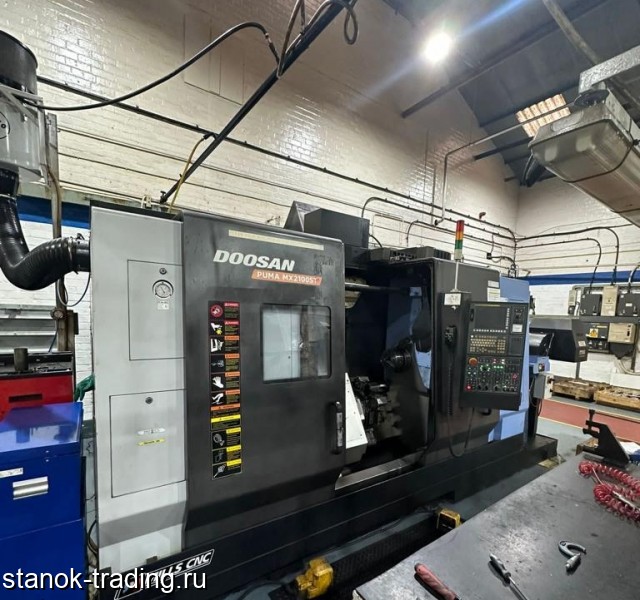

Продаем Токарно-фрезерный центр DOOSAN PUMA MX2100ST
2009 год выпуска.
Количество управляемых ЧПУ осей — 9.
Универсальная фрезерная головка, + револьверный магазин снизу.
C xis & Milling, Tool setter, Coolant, Y-axis, Interlocked guards, Low Volt Light, 3 Jaw Chuck, Manuals, B axis, Tooling, C Axis (0.001 degree) on Sub Spindle, Twin Turret, Remote Hand Wheel, Swarf Conveyor, Sub Spindle, Lower Turret
Control FANUC 32i TA
Z Axis Power Feed
Swing over the Cross-slide 650mm
A axis 1050mm
Bar Capacity 65mm
C axis 0.001 degree
Chuck Size 200mm
Maximum Cutting Diameter 540mm
Maximum Cutting Length 1020mm
Swing 750mm
Turret Positions 12 Station Upper Turret, 12 Station Lower Turret
Rapid Feedrates X1,X2,Z1,Z2,Y,A: 36 x 24 x 36 x 36 x 26 x 30m/minute
Spindle Diameter 76mm
Spindle Motor Power 22kW
Spindle Nose A2-6
Spindle Speed 5000rpm
Sub Spindle Bore 76mm
Sub Spindle C axis 0.001 degree
Sub Spindle Motor 22kW
Sub Spindle Speed 5000rpm
Maximum Tool Length 300mm
Maximum Tool Weight 90mm (120mm without Adjacent Tools)
Milling Motor Power 18.5kW (5.5kW Bottom Turret)
Milling RPM 12000rpm (5000rpm Lower Turret)
Tool Change Capacity 40 Station
Tool Size 25 x 25mm (Bottom Turret)
Tooling Configuration CAPTO C6 (Top Turret) BMT55 (Bottom turret)
B axis Travel +/-120 degrees (0.001 degree)
Number of Axis Controlled 9
X axis Travel 565mm
X2 axis Travel 187mm
Y axis Travel +/- 85mm
Z axis Travel 1050mm
Z2 axis Travel 1050mm
Machine Dimensions 5386 x 2525 x 2805mm
Machine Weight 12000kg.
